CENTUM VP is the latest generation of the CENTUM series and succeeds the CENTUM CS 1000/ CS 3000. While securing clear backward compatibility and consistency with previous CENTUM systems. CENTUM VP is fully backward compatible with the CENTUM CS 1000/CS 3000 systems and secures a smooth and flexible migration path to all previous CENTUM series DCSs.

This course is designed to familiarize participants with the features and terminology of batch processes, the engineering methodology for automating a batch plant, and the implementation of batch control and recipe management on the CENTUM VP BATCH platform.

Training Facility:

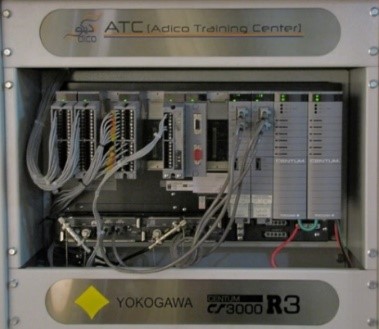

We utilize live control system, with a complete set of redundant hardware and the latest version of related software packages of common FCS / ESD systems, experienced Instructors, simulators, and special tools.

• 6 Nos. PC Engineering Workstation (EWS)
• AFV30D with IO SCS50D via Vnet/IP network
• OS: Windows 10
• Installed CENTUM VP R.6 along with Prosafe-RS R.4
• Software and Hardware Simulation Test Facilities

 Duration: 32 hours

 Location: Adico Training Center (ATC) / Customer Site

 Participants:  All Application/Process Engineers responsible for the design, implementation, maintenance, and Operation of a CENTUM Batch control system.

 Pre-requisites: CENTUM Engineering, SEBOL, Maintenance and Operation Knowledge

 Contents Topics:

• Describe the unique characteristics of batch processes
• Relate to the terminology and batch control models of ISA standard S88.01
• Express the methodology for engineering a batch control project
• Use the Yokogawa batch software manuals, including online documentation
• Design and build Unit Instruments using CENTUM Batch
• Design and build recipe Operations and Phase logic using CENTUM Batch
• Accommodate shared process resources such as pumps and headers
• Build Master Recipes including header, logic, formula data, and equipment requirements
• Create, load, execute, pause, restart and otherwise operate Control Recipes
• Create a batch report which is automatically printed at the end of each batch
• Configure access control security for recipe engineering functions
• Create and display a batch trend
• Project backup and restore
